·         Product Name: ZN85-40.5 Vacuum Circuit Breaker

·         Weight: 230 g

·         Model NO.: VCB 40.5/2000-31.5

·         Origin: CHINA

·         Packing: CASES

·         Brand Name: SUNWAY HANGUANG

·         Delivery Time: 20DAYS

·         Minimum Order: 1PCS

·         Supply Ability: 500PCS

·         Quality System Certification: ISO9001

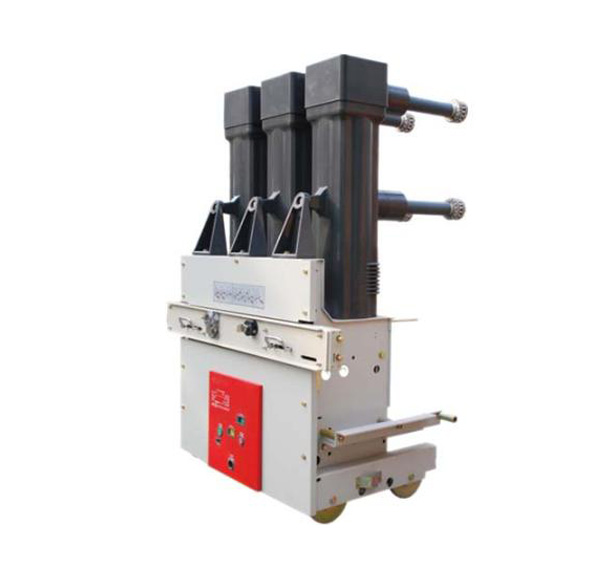

·         Product Details:  ZN85-40.5 Vacuum Circuit Breaker

Product Type: Indoor AC HV VCB

 Product Information

 ZN85-40.5(3AV3) indoor vacuum circuit breaker is a special design which produced by our company and Xi'an High-voltage Electric Apparatus Institute. 40.5kV rated voltage, three-phase and AC 50/60HZ. It applies to mining firms, power house and substation acting as protection and control electric apparatus. It is also applicable in occasions with frequent operation.

 Product Features

 1. The arc-extinguish chamber is on the upper part and the mechanism is on the lower part. This structure isconvenient for debug.
 2. Complex insulating structire using air and organic material; Compactable dimension and small weight.
 3. Vacuum arc-extinguish chamber of Cutler-Hammer Company(USA) and domestic ZMD are both applicable for the VCB.
 4. Simple spring operation mechanism is free from maintenance within 10000 times of operations.
 5. Lead-screw propeller, easy and stable operation and good self-locking capability.

Specification Sheet:
