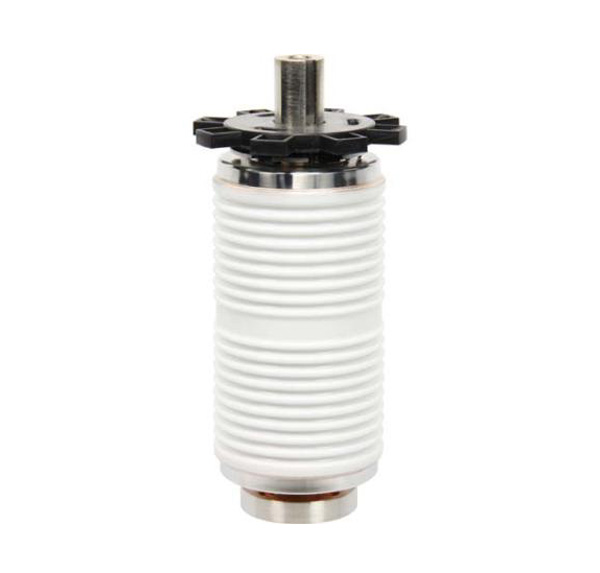

Product Name: TD326E Vacuum Interrupter Hit: 1420 Category name: Vacuum Interrupter Model: VITD 12/1250-31.5E [Back]
Product Description
| ELECTRICAL RATINGS(3PHASE) SYMMETRICAL BASIS | |
| 1.Rated Frequency | 50/60Hz |
| 2.Rated Maximum Line to Line Voltage | 12kV,r.m.s |
| 3.Rated Power Frequency Withstand Voltage:Air | 42kV,r.m.s |
| 4.Rated Impulse Withstand Voltage:Air | 95kV,Peak |
| 5.Rated Normal Current | 1250A |
| 6.Rated Short-Circuit Current(3Phase Symmetrical Basis) | 31.5kA,r.m.s |
| 7.Percentage D.C. Component of Rated S.C. Breaking Current | 50% |
| 8.Rated Short-Circuit Making Current | 80kA,Peak |
| 9.Rated Duration of Short Time Current | 4s |
| 10.Rated Short-Time Withstand Current | 31.5kA,r.m.s |
| 11.Rated Peak Withstand Current | 80kA,r.m.s |
| 12.*Maximum Contact Resistance at Minimum Closing Force | 18Micro ohms |
| 13.*Rated Breaking Current of Single Capacitor Bank | 630A,r.m.s |
| 14.*Rated Breaking Current of Back-to-Back Capacitor Bank | 400A,r.m.s |
| 15.Rated operating sequence | o-0.3s-co-180s-co |
| MECHANICAL DATA | |
| 1.Interrupter Weight(Approx.) | 3.44kg |
| 2.Moving Part Weight(Approx.) | 1.1kg |
| 3.Closing Force due to Bellow and Atmospheric | 120±50N |
| 4.Force Required to Hold Contacts open at Full Stroke | 190±60N |
| MECHANICAL REQUIREMENTS(REF. VCB) | |
| 1.Contact Stroke | 11±1 mm |
| 2.Opening Speed(average of 75 contact gap) | 1.1±0.2m/Sec |
| 3.Maximum Overtravel During Opening | 2mm |
| 4.Maximun Rebound During Opening | 2mm |
| 5.Closing Speed(average of last 30% contact gap) | 0.6±0.2m/Sec |
| 6.Maximum Contact Bounse Duration(with maximum 2 bounces) | ≤2ms |
| 7.Rated Contact Compressive Force | 3150±200N |
| 8.Closing and Opening non-simultaneity of three-phase Contacts | ≤2ms |
| LIFE (ESTIMATED) | |
| 1.Electrical Life at Rated Normal Current | 50,000Operations |
| 2.Electrical Life at Rated Short Circuit Current | 100Operations |
| 3.Mechanical Life | 50,000Operations |
| 4.Contact Erosion Limit | 3mm |
| 5.Shelf Life | 20Years |
| 1.Meets or exceeds the electrical endurance requirements of class E2 for autoreclosing duty per IEC 62271-200 and JB 8738-2008. 2.* Rated Characteristics to be given on request |
|
